Name: RF Antenna Board
Brand: Ben Qiang
Price: 1 USD

Brand Name : Ben Qiang

Place of Origin : Shenzhen, China

MOQ : 1PCS

Price : custom made

Payment Terms : Bank Transfer/Alipay/PayPal

Supply Ability : 200,000 square meters/year

Delivery Time : 3-7 days delivery

Packaging Details : Air bead vacuum packaging

Certification : ISO/TS16949/RoHS/TS16949

Model Number : FR-4/Rogers

Application : RF Antenna

Characteristic : High frequency+high TG material

Material : IT-88GMW+S1000-2M

Layer : 6L

Thickness : 1.0mm±0.1mm

Min hole diameterv : mechanical hole 0.35mm Aspect ratio:14：1

Min width/space : 95/90um

Surface finish : ENIG(0.05um)

Internal Model : C330H98C06

Contact Now

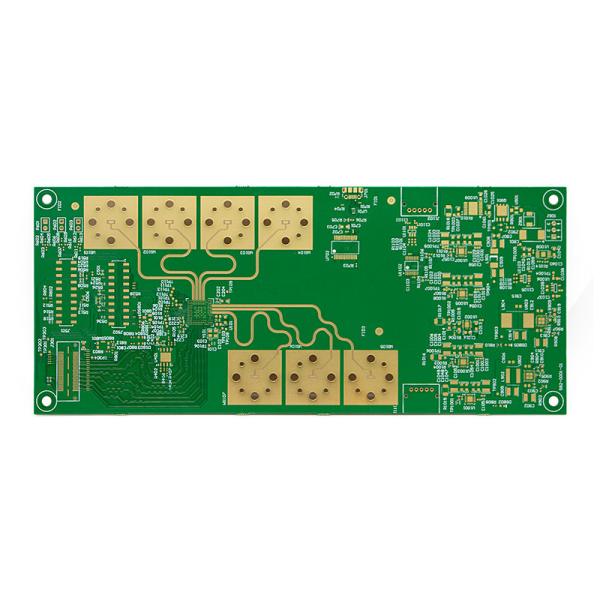

RF Antenna Board

Project	PCB process capability
Layer count	1-40 Layers
Min outer line width/space	3/3mil
Outer copper thickness	280um(8OZ)
Inner copper thickness	210um(6OZ)
Tolerance of PCB thickness	board thickness≤1.0mm; ±0.1mm,+/-0.05mm below 4 layers board thickness＞1.0mm; ±10%
Minimum PTH	Mechanical hole 4mil, laser 3mil
Material	FR-4 ,High Tg ,Halogen-free ,PTFE ,Rogers,Polyimide
HDI	Levels 2-7
Special Process	Buried blind vias, blind slots, rigid-flex combination,mixed pressure, back drilling, buried resistance,buriedcapacitance, milling steps, multi-combination impedance;
